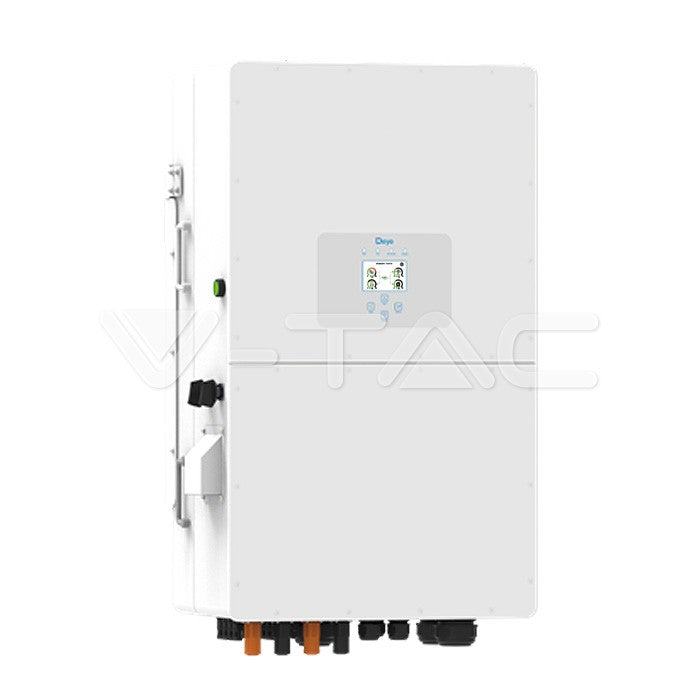

SOLAR INVERTER HYBRID 30KW THREE PHASE HIGH VOLTAGE 527x894x294

SOLAR INVERTER HYBRID 30KW THREE PHASE HIGH VOLTAGE 527x894x294

11998

€10.250,00 EUR
€10.250,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Current
    • Max. Operating PV Input Current (A) 36+36+36;
    • Max. Input Short-Circuit Current (A) 55+55+55;
    • Rated AC Input/Output Current (A) 45.5/43.5;
    • Max. AC Input/Output Current (A) 50/47.9;
  • Wattage
    • Max. PV Input Power: 39000W;
    • Rated AC Input/Output Active Power (W): 30000W;
    • Peak Power (off-grid) (W) 1.5 times of rated power, 10s;
  • Voltage
    • Max. PV Input Voltage: 1000V;
    • MPPT Range: 150~850V;Rated PV Input Voltage: 600V;
    • Start-up Voltage: 180V;
  • Frequency: Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-6
  • Power Factor: 0.8 leading to 0.8 lagging
  • IP Rating: IP65
  • Working conditions: -40 to +60℃, >45℃ Derating
  • Dimensions: 527 x 894 x 294 mm
