Atmoce MG100 Gateway

Atmoce MG100 Gateway

ATMG100

€0,00 EUR
€0,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

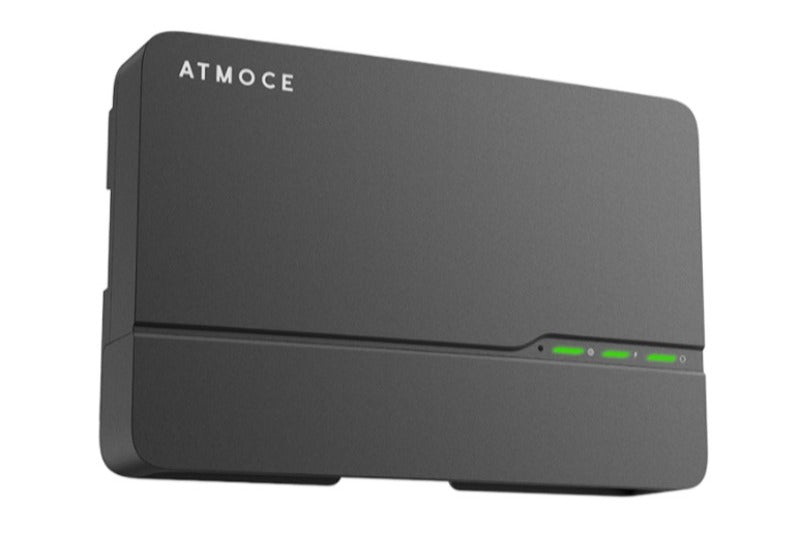

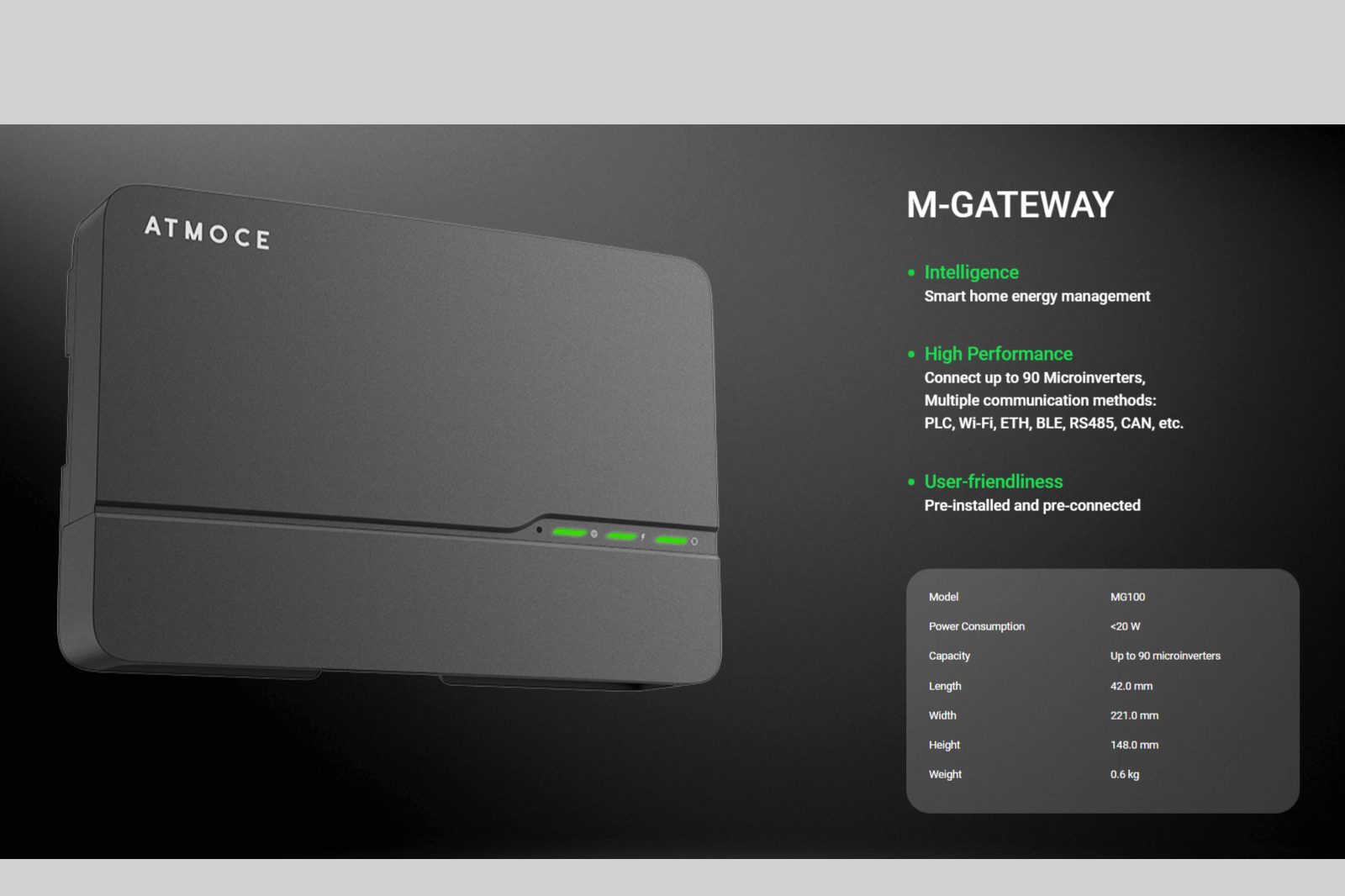

Achieve smart home energy management with the Atmoce MG100 Gateway. It has an IP30 protection, simultaneous Bluetooth and Wi-Fi communication, and a microinverter capacity of up to 90 units.

Multiple communication methods: PLC, Wi-Fi, ETH, BLE, RS485, CAN, etc.
It has user-friendly installation, meaning it is pre-installed and pre-connected, and can be activated easily by using the Atmozen app.

The Gateway is a mandatory component of the system!



 Electrical Parameters
Power consumption:  <5W (no USB device),  <20W (inc. USB device)
AC surge protection:  TYPE II
Number of phases:  1 or 3
Microinverter management capacity:  90 units
Battery management capacity:  42kWh (6 x 7kWh)



 Mechanical Parameters
IP Rating:  IP30
Weight:  0.6 kg
Dimensions:  221 x 148 x 42 mm
Ambient temp. range:  -30 to 65°C
